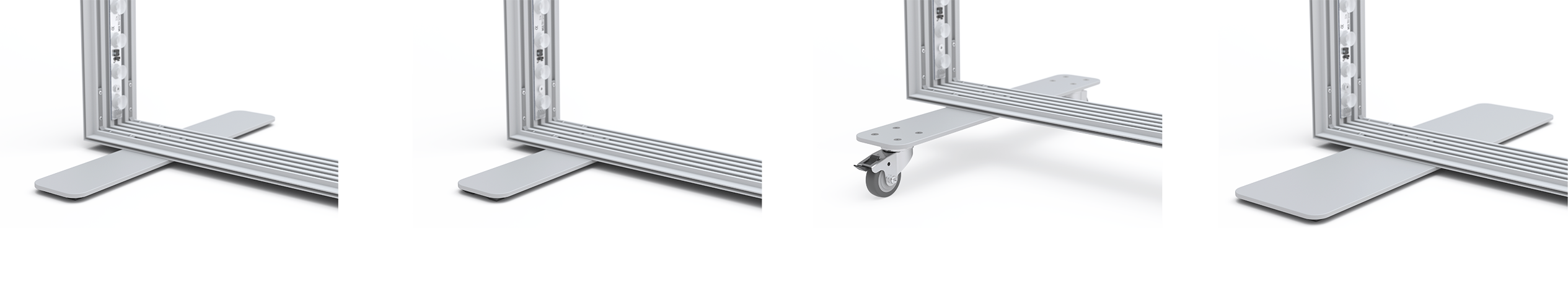

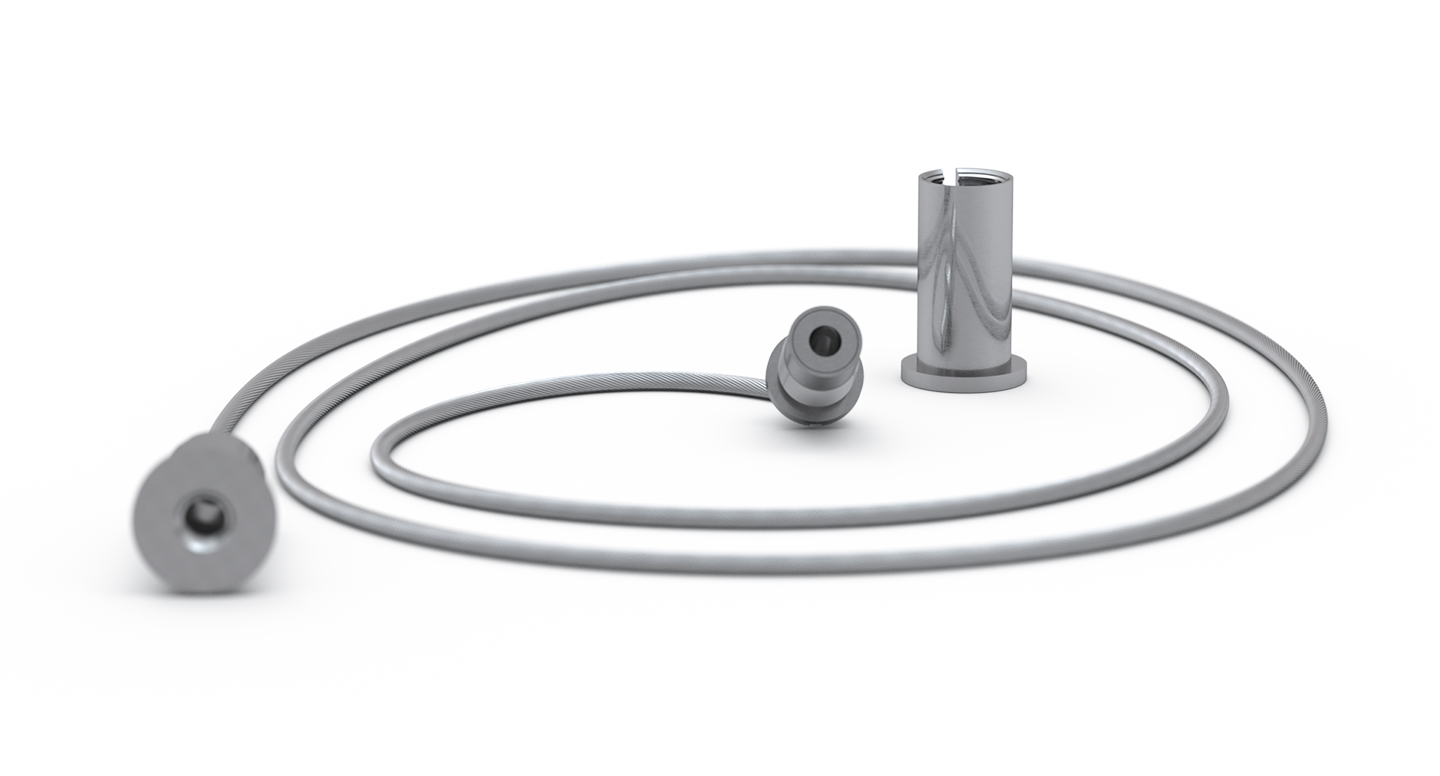

Multi frame side light LED light boxes can be used single or double sided, free standing, wall mounted or suspended


- +

multi frame - Side Light

Multi frame side light LED light boxes can be used single or double sided, free standing, wall mounted or suspended The LED light boxes work with side illumination – LED modules and the drivers are built in the frame on two opposite profiles. The biggest distance which can be lit in this way evenly is 300 cm / 118”. Therefore 300 cm / 118” high or long light boxes can be built. Theoretically the length / height is endless. For the profile size 80 mm, the maximum height or width must not exceed 120 cm / 47”, as the illumination is not sufficient for larger sizes.

Profile Depths

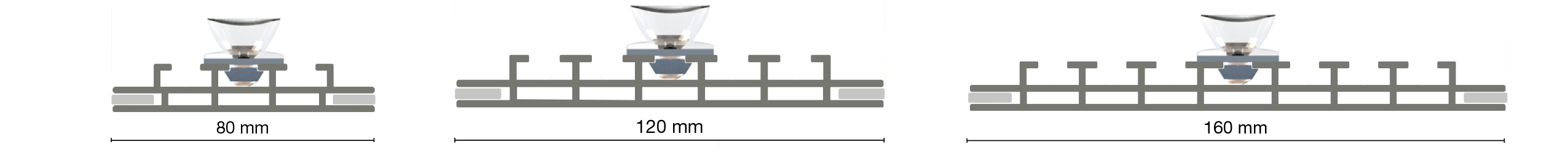

Three different profile dimensions (depth) are used to build different frame sizes  – 80, 120 and 160 mm / 3.2”, 4.7” and 6.3” are available.

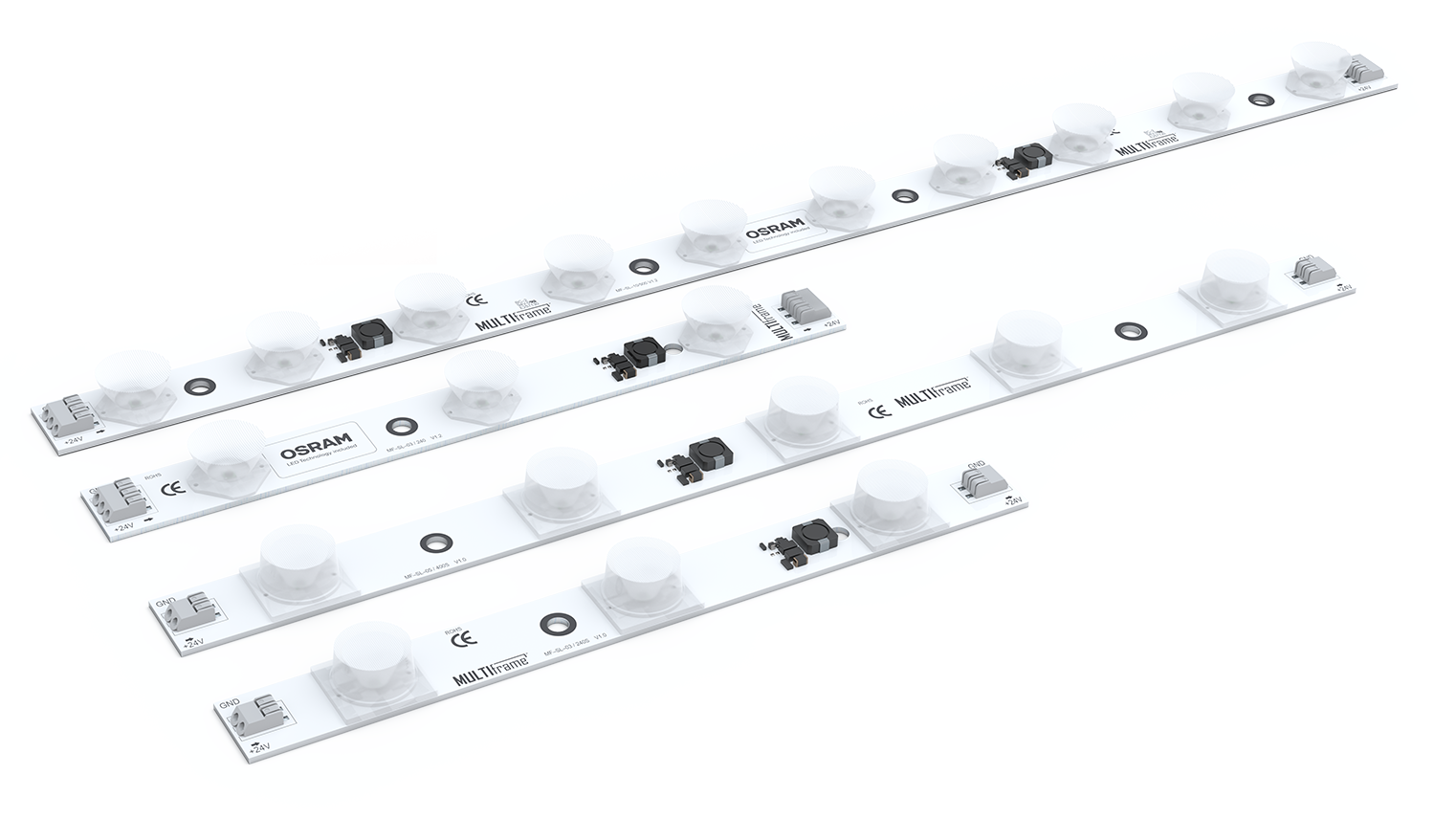

LED technology

The modular design of the LED modules allow us to backlight almost any frame size with an even, bright light with no hot spots. The perfect combination of LED and lens guarantees the absolute even lighting and brightness without any shadows.

Upon request even the brightness of the LEDs can be adjusted (dimmable).

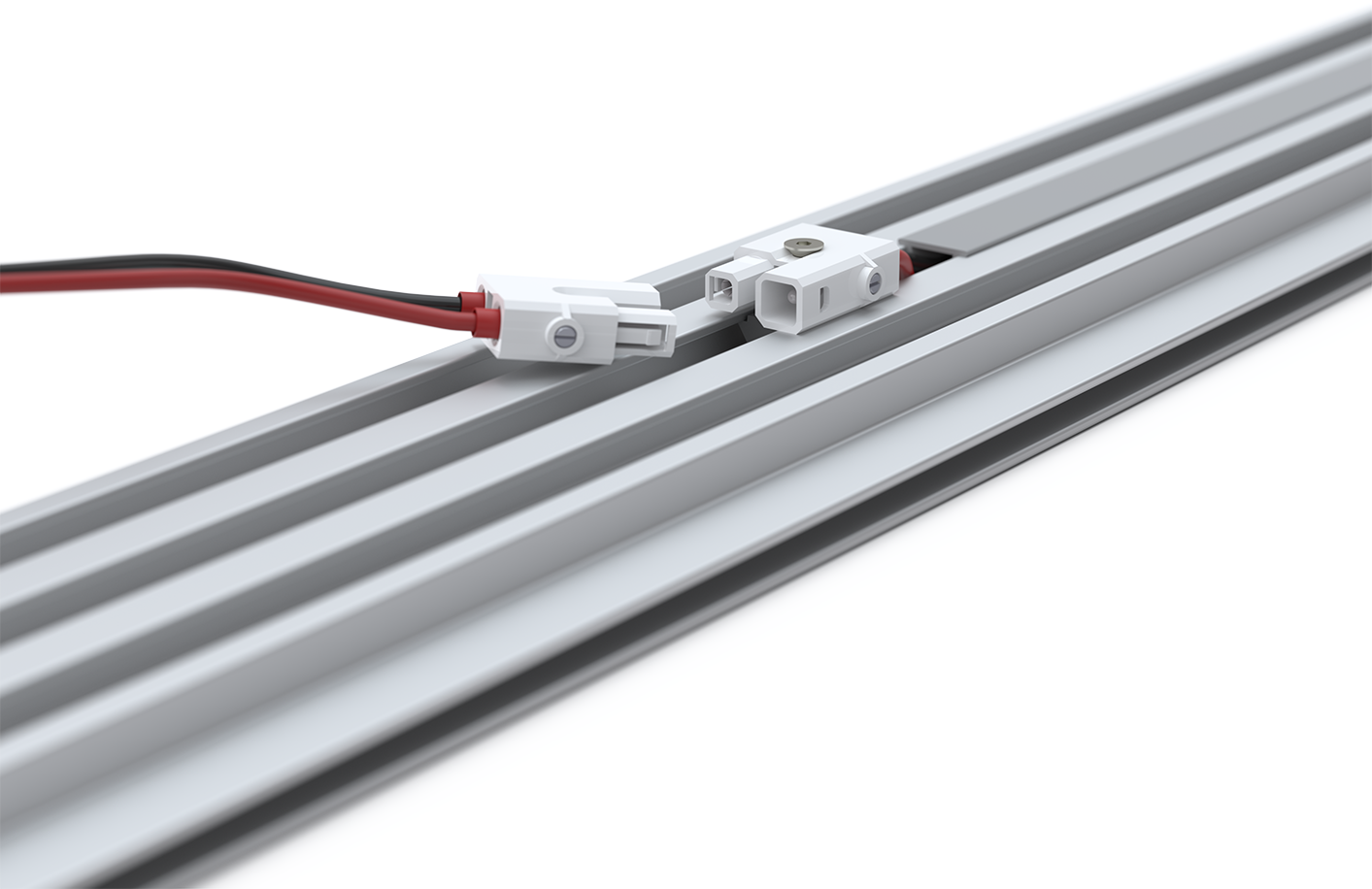

plug & play

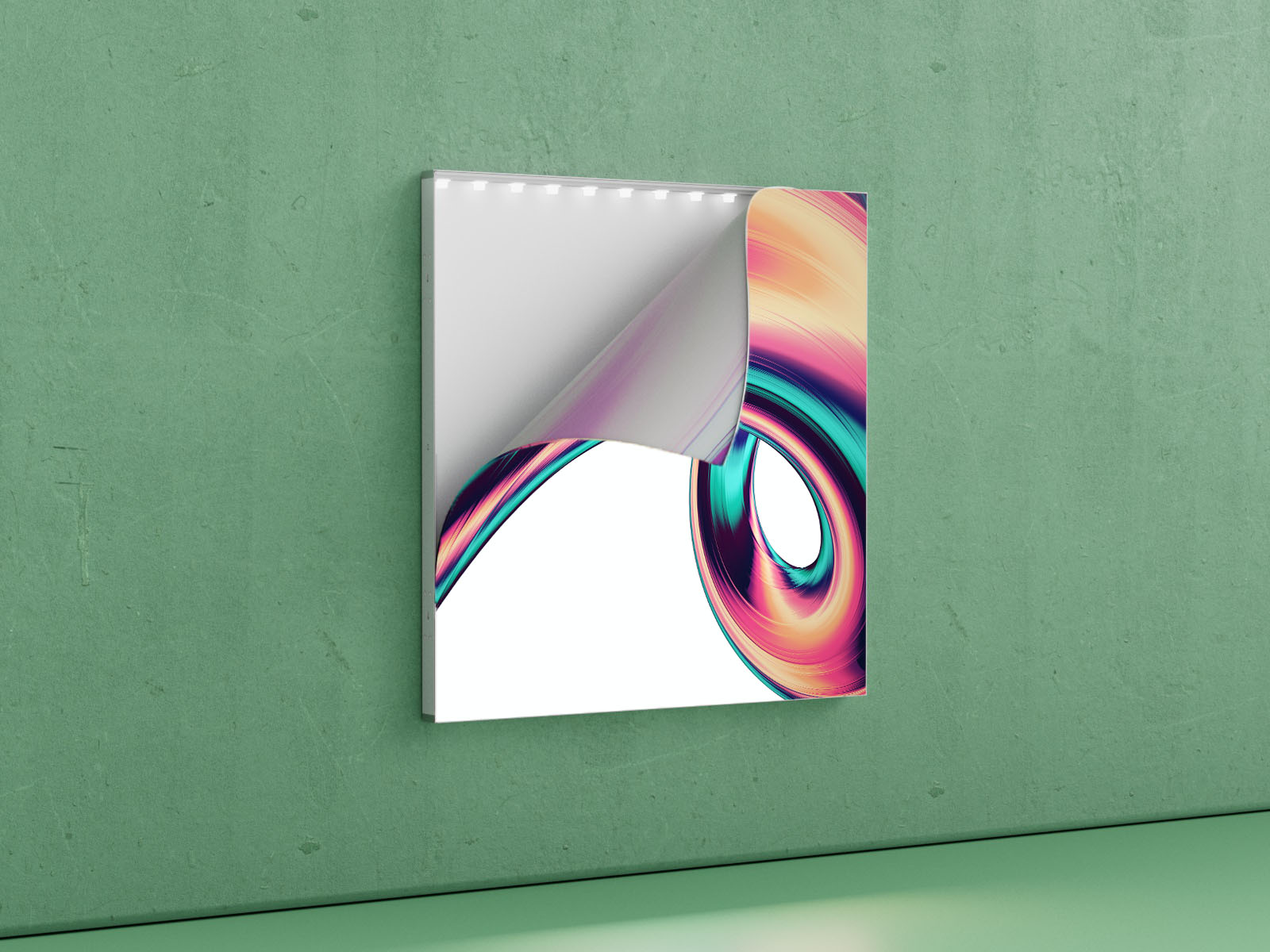

Frames can be delivered in parts. This safes transport costs and packing material. Assemble the frame, connect power supply and cables – plug it in and finished.





RAL colours

Different RAL colours are available upon request (powder coating).

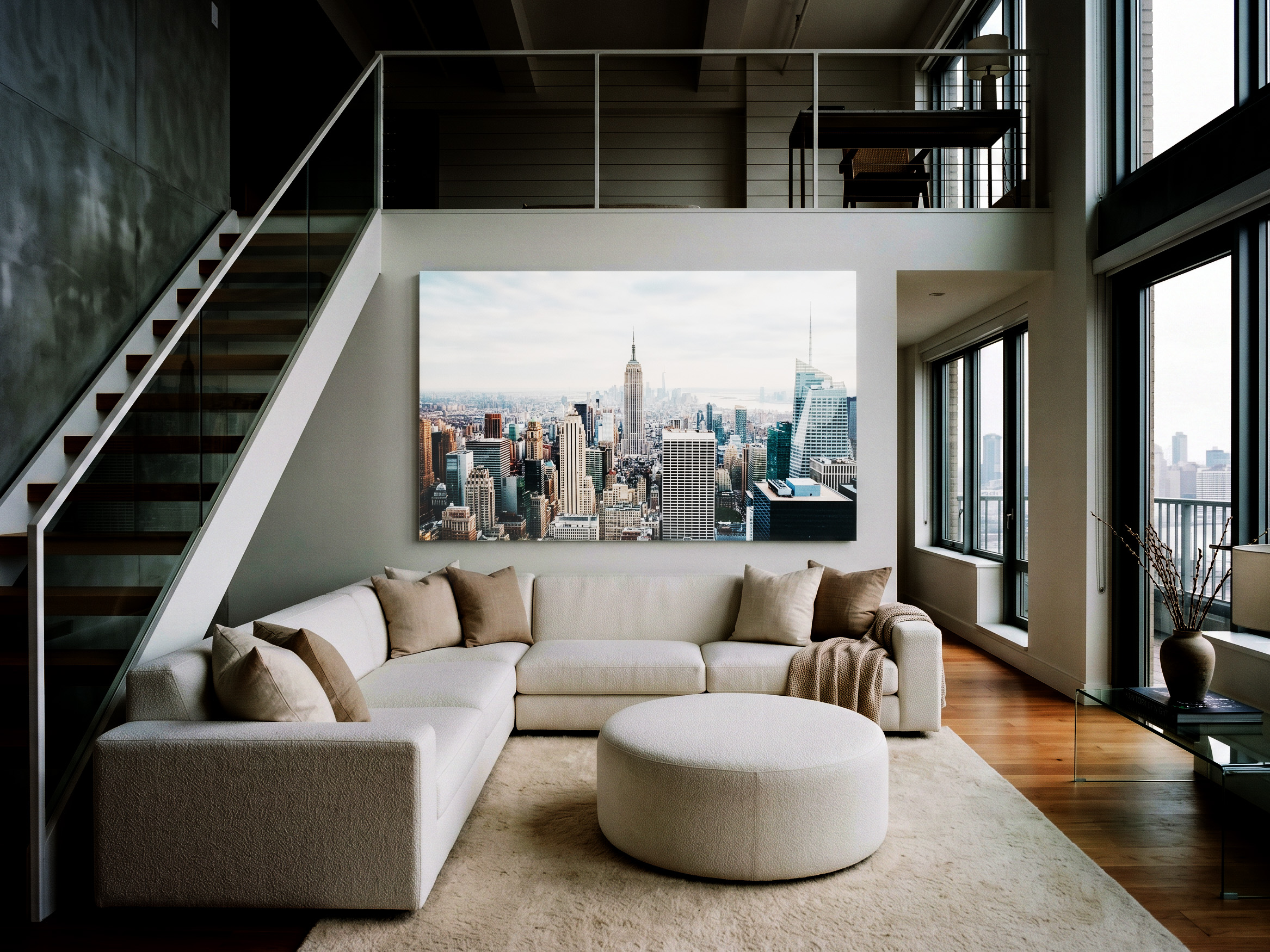

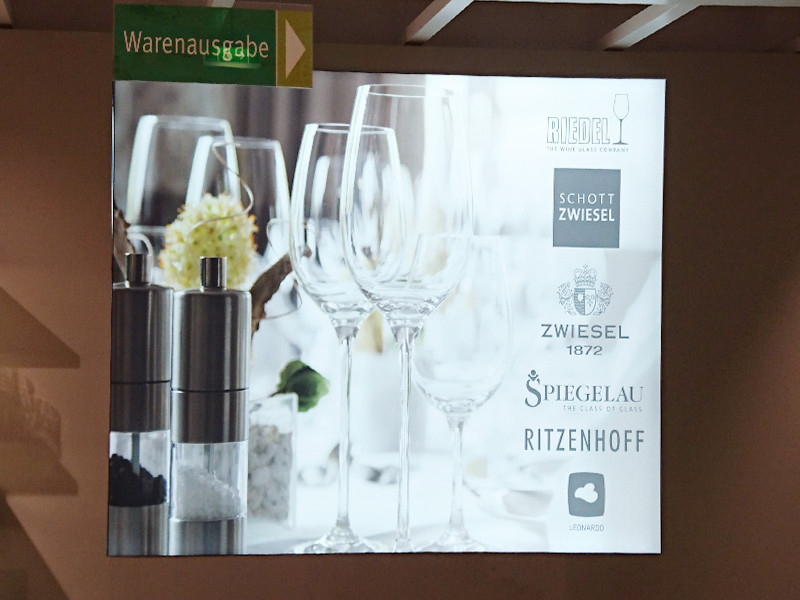

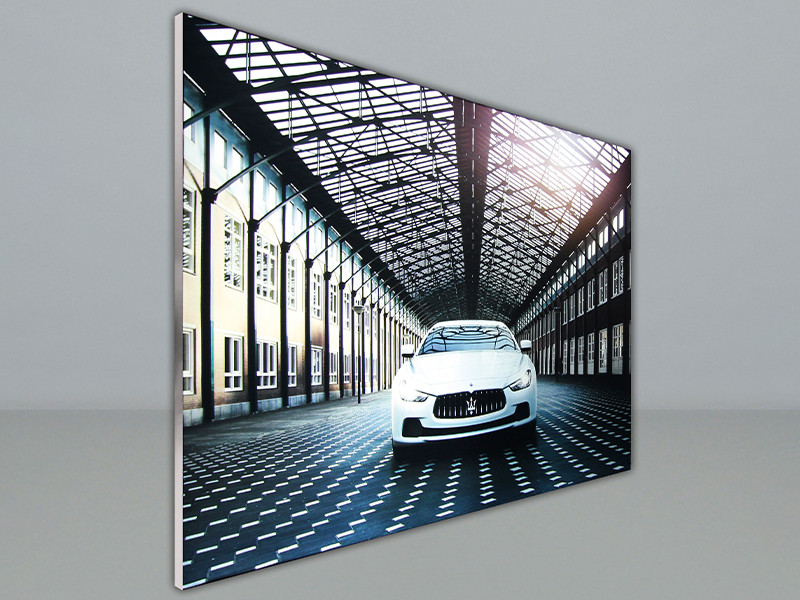

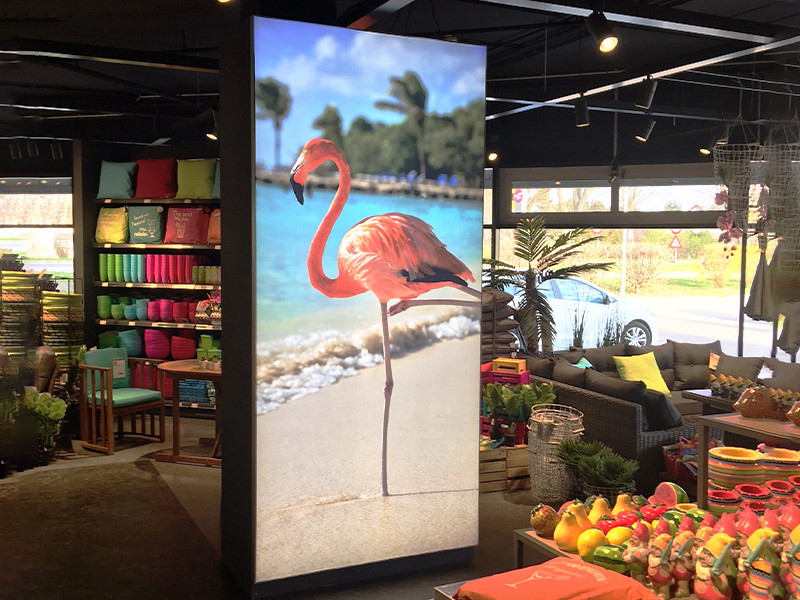

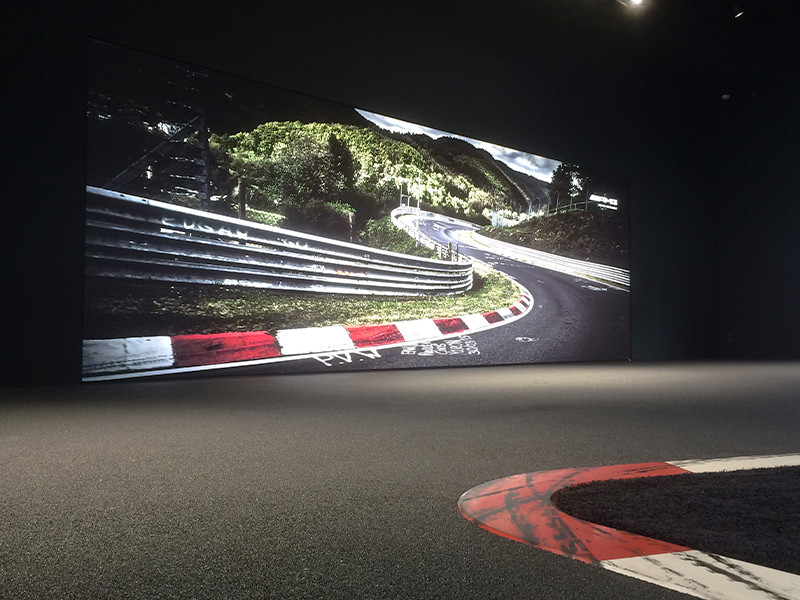

APPLICATIONS

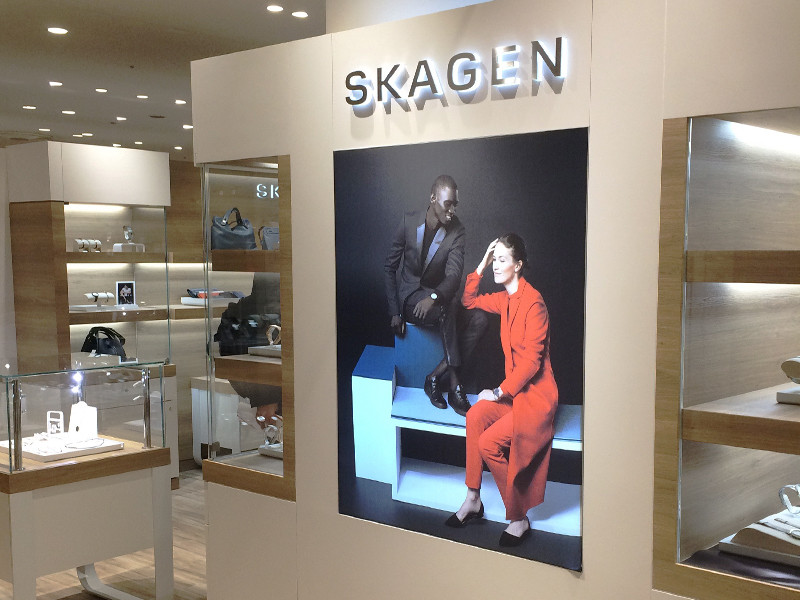

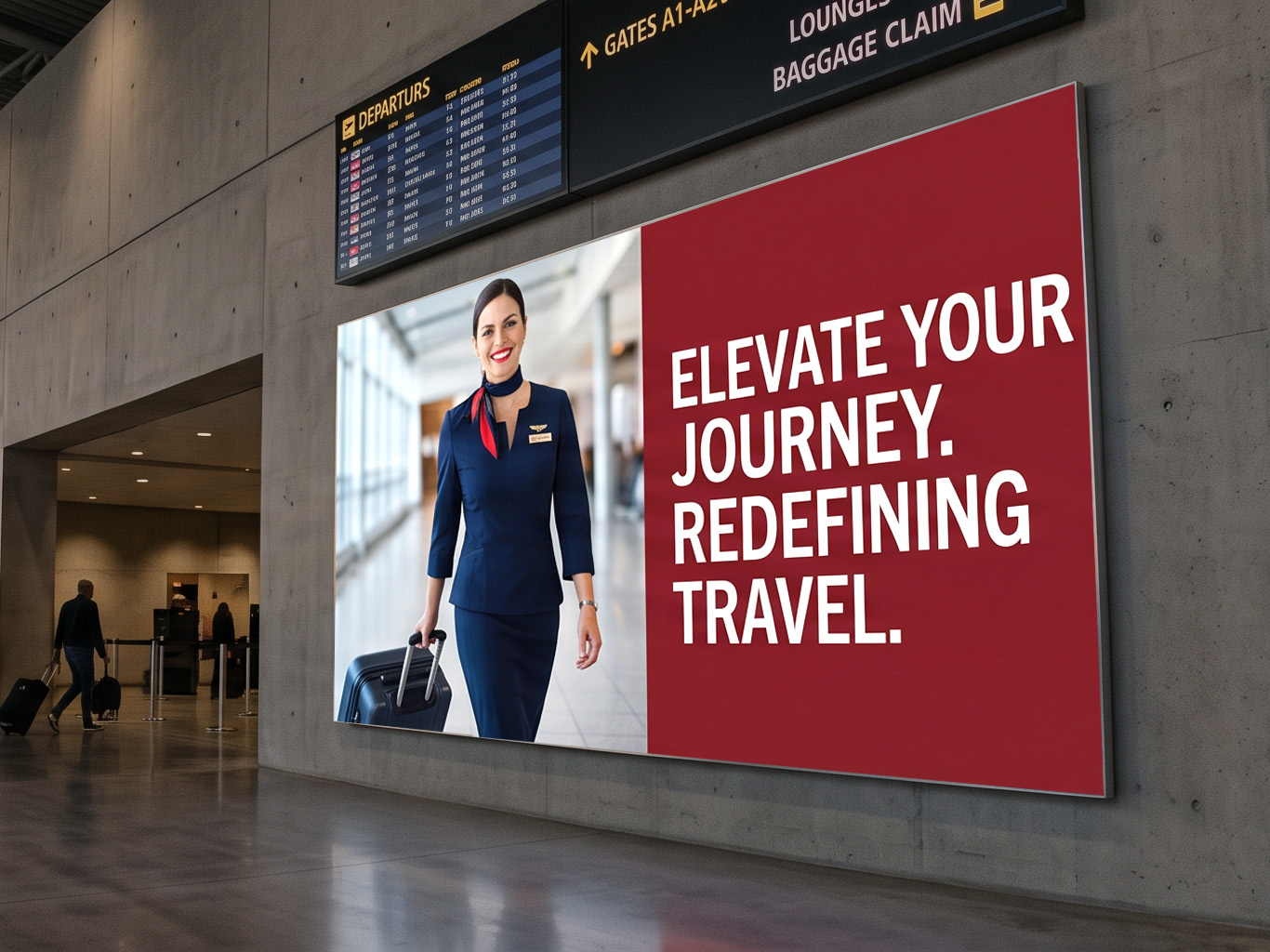

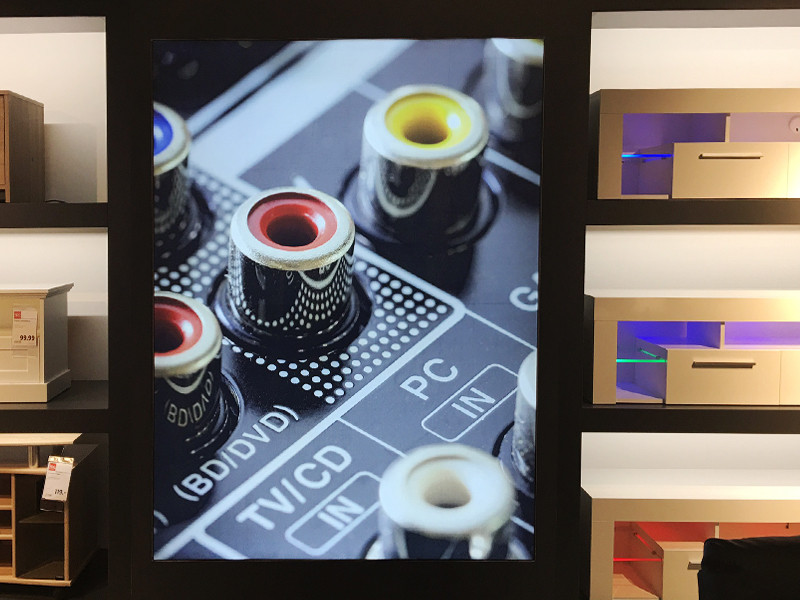

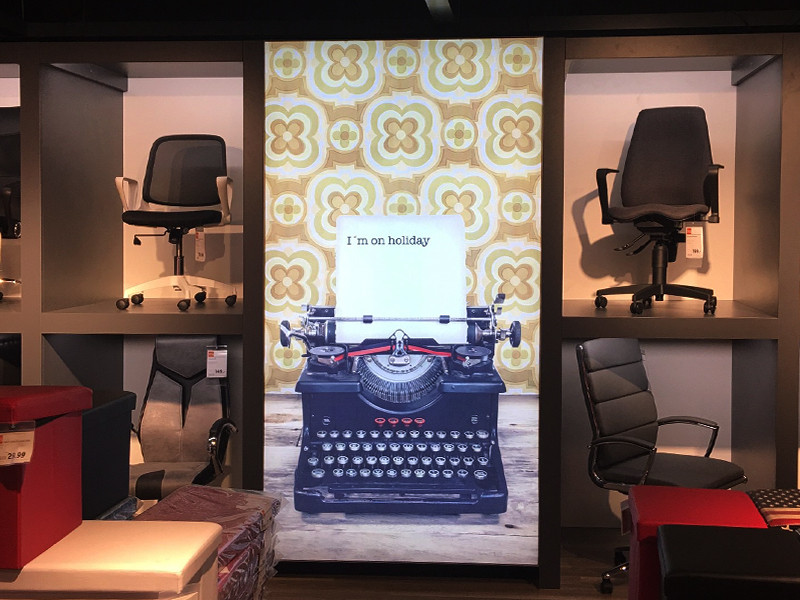

The Side Light wall frames are perfect for a variety of applications. From retail displays and trade shows to corporate spaces and hospitality venues, these illuminated frames create eye-catching, vibrant visuals that enhance any setting. Whether used to showcase products, highlight promotional content, or add a modern touch to office interiors, Side Light frames deliver bright, evenly-lit graphics that captivate attention. Ideal for events, galleries, and exhibitions, these frames bring your brand or message to life with stunning backlit displays.

Print

Two high-quality printing methods are available – depending on requirements and application:

UV Printing
With UV printing, liquid UV ink is applied directly to the textile and instantly cured with UV light. The color stays on the surface of the fabric, delivering precise, opaque, and high-contrast results.

- Intense, full coverage colors

- Highest level of detail

- Sharp, high-contrast motifs

- Super Black - an especially deep and intense black

Note: Always store UV-printed fabrics rolled up – folding can cause color cracking.




Sublimation Printing
With sublimation printing, the ink is vaporized by heat directly into the fibers of the fabric – becoming a permanent part of the material.

- Vibrant, brilliant colors with high color depth

- Permanently fixed

- Stable even after many washes

- No noticeable layer on the fabric

- Suitable for gradients and detailed motifs

- Fabrics can be folded - space-saving storage
